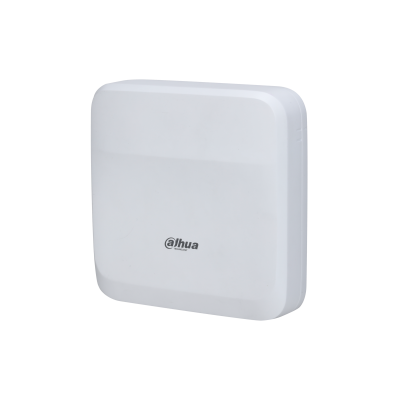

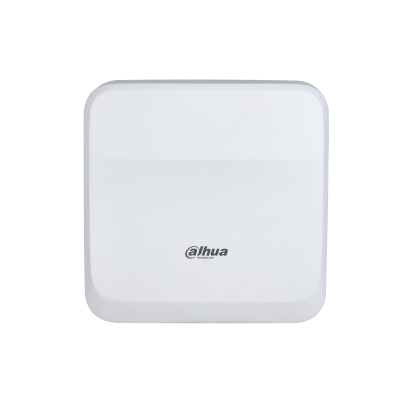

Elevator Controller

> Built of flame-retardant PC and ABS material, it is both sturdy and elegant with an IK06 rating.

DHI-ECC02

> Supports TCP and IP connection, and standard PoE.
> Accesses readers through Wiegand (wiegand 34) and RS-485 protocols.
> Supports platform mode and standalone mode. You can perform configurations and management through DSS Pro in platform mode and through the webpage of the elevator controller in standalone mode.
> Platform mode: Supports 30,000 users, 30,000 cards or QR codes, 10,000 fingerprints, 30,000 passwords, and 300,000 records.
> Standalone mode: Supports 10,000 users, 10,000 cards, 10,000 fingerprints, 10,000 passwords, and 300,000 records.
> Offers multiple types of alarms such as the duress, tamper, blocklist for elevator controller, and offline alarms for the elevator control module.
> Up to 128 floors can be controlled through the elevator control  module, and up to 8 elevator call modules and 8 elevator control modules can be connected.
> Retains stored data even while powered off.
> Devices can also be updated through the webpage.
> Watchdog protects the system to allow the device to be stable and perform efficiently
